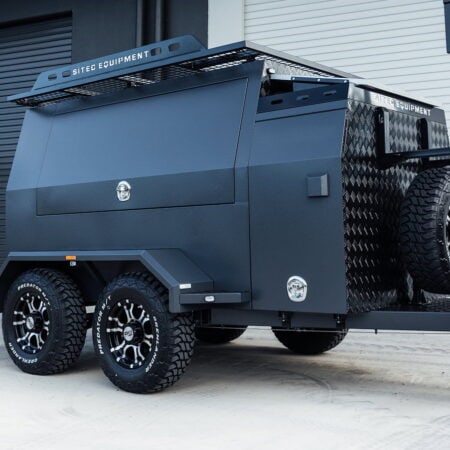

9X5 TRADESMAN TRAILER

Price: $20,900 plus GST (Finance available – get in contact for current rates / repayments)

Available only through request.

enquire here



SKU: 9X5 TRADESMAN TRAILER Category: Tag:

Description

Specifications with standard inclusions:

  • ATM 3200KG
  • TARE 1450KG. (without options)
  • PAYLOAD 1750KG
  • BALL WEIGHT 135KG
  • Overall length of storage area 3300mm
  • Overall length of trailer 4800mm
  • 16’’ Alloy wheels inc spare.
  • Heavy duty RHS Hot dipped galvanised chassis 100 / 150×50 x 4mm
  • Precision CNC Laser cut Zinc Anneal sheeting & Duragal framing.
  • Aluminium checker plate stone guard (removable for repaint)
  • Roof rack inc rear full width roller, 8 x tie down points, mesh floor.
  • Side access ladder
  • Base 12v Package – 100ah deep cycle battery, Lighting control panel, fuse protection, 5 x LED light bars two inside main compartment & three on inside of doors, voltmeter, USB charging point, Cig socket.
  • Anderson plug on drawbar for charging battery from tow vehicle.
  • 8 leaf Rocker Roller suspension and Solid 50mm square Axles (Rated 3.5 tonne)
  • Dual 12’’ electric brake hubs on both axles with 6 stud Land cruiser stud pattern
  • Safety breakaway kit fitted.
  • 3500kg Tow Coupling to suit 50mm ball with handbrake.
  • Two front side drawers, 700L X 220W X 170D
  • Rear wall and shelving in main compartment
  • 2 x Massive rear drawers 2220L X 475W X 320 Deep with C channel and bearing rollers (not draw runners) 3 – point locking system for extra security with locking rods, whale tail locks that can also be padlocked – great security system when working remote or leaving your trailer on a construction site.
  • Main compartment doors – 3-point locking system with locking rods, whale tail locks that can also be padlocked, great security system when working remote or leaving your trailer on a construction site.
  • Compressor box, 600mm wide, two side access doors – one with battery box, top pull out drawer 1010W x 600L X 160D with 3-point locking system & top storage area.
  • Surface finish – UV Stabilised Powder coat.

Extras – Everyone generally requires something different, tell us what you plan on running from the Electrical system then we can design and price the system for you.

  • 240v Packages available – 15a Power inlet with 20a RCD / MCB combination circuit breaker & 4 – 8 double pole power points fitted, test and tag (fitted to caravan and portable buildings standard by licenced electrician)
  • Standalone solar packages – fixed or blanket panels, dual battery system, solar regulator, inverter, AC Chargers, DC / DC charger, GPS tracker – run your fridge, microwave, power tool battery charger, (fitted by qualified trades people), Enerdrive / Victron / Redarc Equipment used.Specifications subject to change. Get in touch for more information.* Subject to finance criteria
